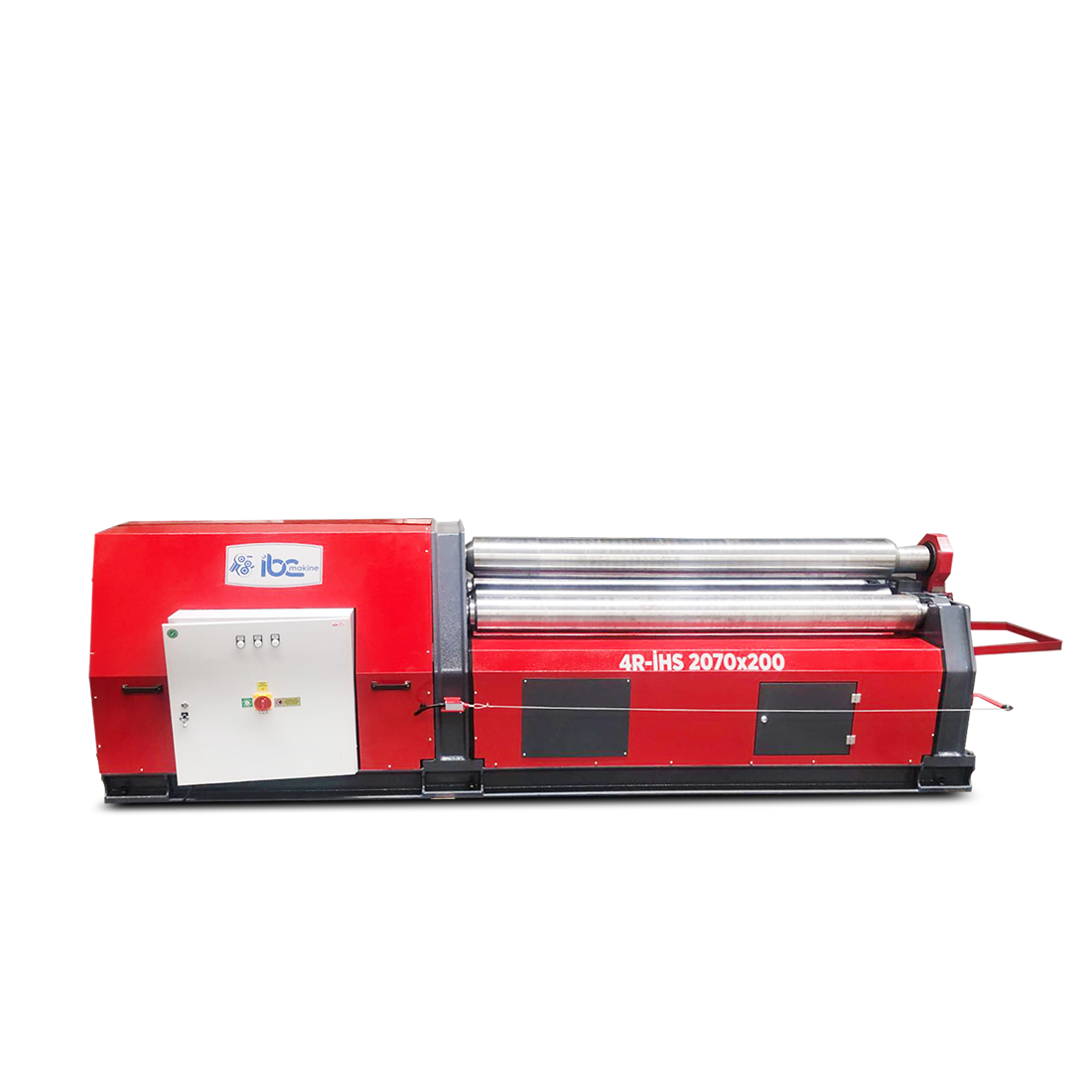

Four Rolls Plate Bending Machine
4R-IHS
Four Rolls Plate Bending Machine

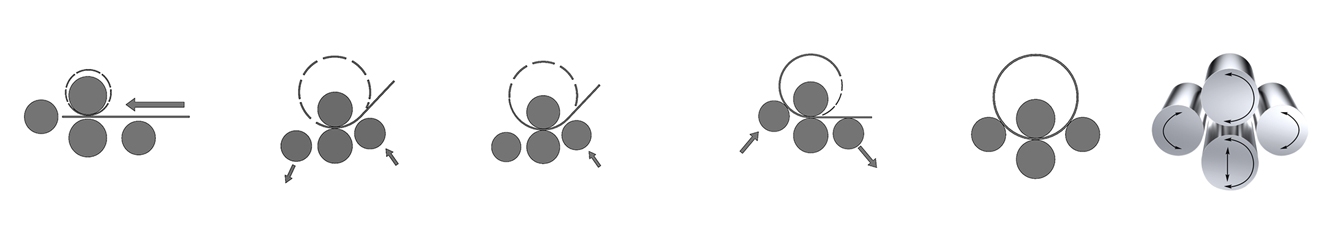

The Four-Roller Mechanical Plate Bending Machine is an industrial machine used for bending metal sheets, performing the bending operation with high precision through a system that involves the coordination of four rollers. The top roller is fixed, while the bottom roller is movable, and the two side rollers ensure the smooth bending of the material. This design allows metal sheets of various thicknesses and widths to be bent to the desired angle and diameter.
Thanks to the effective coordination of the four rollers, the machine is widely preferred in the construction, automotive, machinery manufacturing, and energy sectors. The Four-Roller Mechanical Plate Bending Machine offers superior performance, especially in bending large-diameter and heavy metal sheets, providing high efficiency in production processes and guaranteeing high-quality results.
- Machine body made of ST-52 steel construction
- High-performance shafts made from SAE 1050 (CK-45) certified steel
- Rollers driven by a hydraulic motor and planetary reducer
- Hydraulic up-and-down movement system for the bottom and side rollers
- Hydraulically operated upper roller cover
- Induction-hardened shafts
- Conical bending system
- Mobile electric control panel
- Conical adjustment via control panel
- Digital indicator for viewing the movement of the three bottom rollers and side rollers
- Hydraulic balancing system
- Protected against overloads
- Compliance with CE standards
- Dual-speed working system (Q275 and above)
- Oil cooling system (Q275 and above)
- Electro-hydraulic calibration
Technical Specifications
4R IHS 1570
| 4R IHS | WITH PRE-BENDING | WITHOUT PRE-BENDING | Without Pre-Bending, flat plate ends may remain depending on diameter | |||||||||
| Usefull Length | Min. Diameter=top roll QX1.5 times | Min. Diameter=top roll QX5 times | Min. Diameter=top roll QX1.5 times | Min. Diameter=top roll QX5 times | Central rolls Q | Side Rolls Q | Motor Power | Working Speed | Machine Dimensions (LxWxH) | Weight | ||
| MODEL | mm | mm | mm | mm | mm | mm | mm | kw | m/min.(dk) | mm | kg | |
| 4R IHS 1570X150 | 1570 | 3 | 4 | 4 | 6 | 150 | 130 | 1,5+1,1 | 6 | 3350x1200x1210 | 2470 | |
| 4R IHS 1570X180 | 1570 | 5 | 7 | 7 | 9 | 180 | 150 | 4,0+1,5 | 5 | 3400x1400x1290 | 3000 | |
| 4R IHS 1570X200 | 1570 | 7 | 9 | 9 | 11 | 200 | 180 | 4,0+1,5 | 6 | 3400x1400x1290 | 3350 | |
| 4R IHS 1570X220 | 1570 | 8 | 10 | 10 | 12 | 220 | 180 | 4+1,5 | 5 | 3550x1550x1470 | 4350 | |
| 4R IHS 1570X250 | 1570 | 10 | 12 | 12 | 15 | 250 | 200 | 7,5+1,5 | 5 | 3550x1550x1470 | 4750 | |
Data based upon is given for 240Nmm² plate yielding strength.
4R IHS 2070
| 4R IHS | WITH PRE-BENDING | WITHOUT PRE-BENDING | Without Pre-Bending, flat plate ends may remain depending on diameter | |||||||||
| Usefull Length | Min. Diameter=top roll QX1.5 times | Min. Diameter=top roll QX5 times | Min. Diameter=top roll QX1.5 times | Min. Diameter=top roll QX5 times | Central rolls Q | Side Rolls Q | Motor Power | Working Speed | Machine Dimensions (LxWxH) | Weight | ||
| MODEL | mm | mm | mm | mm | mm | mm | mm | kw | m/min.(dk) | mm | kg | |
| 4R IHS 2070X130 | 2070 | 2 | 3 | 3 | 4 | 130 | 130 | 1,5+1,1 | 5 | 3850x1200x1210 | 2550 | |
| 4R IHS 2070X150 | 2070 | 3 | 4 | 4 | 6 | 150 | 130 | 1,5+1,1 | 6 | 3850x1200x1210 | 2900 | |
| 4R IHS 2070X180 | 2070 | 4 | 6 | 6 | 8 | 180 | 150 | 4,0+1,5 | 5 | 3900x1400x1390 | 3400 | |
| 4R IHS 2070X200 | 2070 | 6 | 8 | 8 | 10 | 200 | 180 | 4,0+1,5 | 6 | 3900x1400x1390 | 3850 | |
| 4R IHS 2070X220 | 2070 | 7 | 9 | 9 | 11 | 220 | 180 | 4+1,5 | 5 | 4050x1550x1470 | 4900 | |
| 4R IHS 2070X250 | 2070 | 8 | 10 | 10 | 12 | 250 | 200 | 7,5+1,5 | 5 | 4050x1550x1470 | 5450 | |
| 4R IHS 2070X275 | 2070 | 12 | 16 | 16 | 20 | 275 | 220 | 16.5 | 1,5-5 | 4900x1750x1950 | 8550 | |
| 4R IHS 2070X320 | 2070 | 16 | 20 | 20 | 25 | 320 | 240 | 20 | 1,5-5 | 4950x1850x2050 | 10750 | |
| 4R IHS 2070X350 | 2070 | 20 | 25 | 25 | 30 | 350 | 260 | 23.5 | 1,5-5 | 4950x1950x2050 | 11500 | |
| 4R IHS 2070X380 | 2070 | 25 | 30 | 30 | 40 | 380 | 300 | 31.5 | 1,5-5 | 4950x2300x2450 | 15800 | |
| 4R IHS 2070X400 | 2070 | 30 | 35 | 35 | 45 | 400 | 300 | 38.5 | 1,5-5 | 4950x2300x2450 | 16500 | |
| 4R IHS 2070X460 | 2070 | 35 | 40 | 40 | 50 | 460 | 380 | 38.5 | 1,5-5 | 4950x2350x2450 | 19600 | |
| 4R IHS 2070X500 | 2070 | 40 | 45 | 45 | 55 | 500 | 400 | 60 | 1-4 | 5600x2850x3000 | 33500 | |
| 4R IHS 2070X550 | 2070 | 45 | 50 | 50 | 60 | 550 | 450 | 66 | 1-4 | 5750x2950x3050 | 40000 | |
| 4R IHS 2070X580 | 2070 | 50 | 55 | 55 | 65 | 580 | 480 | 73 | 1-4 | 5800X3100X3100 | 44300 | |
| 4R IHS 2070X620 | 2070 | 70 | 80 | 80 | 85 | 620 | 520 | 123 | 1-4 | 6300X3200X3300 | 55000 | |
Data based upon is given for 240Nmm² plate yielding strength.
4R IHS 2570
| 4R IHS | WITH PRE-BENDING | WITHOUT PRE-BENDING | Without Pre-Bending, flat plate ends may remain depending on diameter | |||||||||
| Usefull Length | Min. Diameter=top roll QX1.5 times | Min. Diameter=top roll QX5 times | Min. Diameter=top roll QX1.5 times | Min. Diameter=top roll QX5 times | Central rolls Q | Side Rolls Q | Motor Power | Working Speed | Machine Dimensions (LxWxH) | Weight | ||
| MODEL | mm | mm | mm | mm | mm | mm | mm | kw | m/min.(dk) | mm | kg | |
| 4R IHS 2570X150 | 2570 | 2 | 3 | 3 | 4 | 150 | 130 | 1,5+1,1 | 6 | 4350x1200x1210 | 3330 | |
| 4R IHS 2570X180 | 2570 | 3 | 4 | 4 | 6 | 180 | 150 | 4,0+1,5 | 5 | 4400x1400x1390 | 3800 | |
| 4R IHS 2570X200 | 2570 | 4 | 6 | 6 | 8 | 200 | 180 | 4,0+1,5 | 6 | 4400x1400x1390 | 4350 | |
| 4R IHS 2570X220 | 2570 | 5 | 7 | 7 | 9 | 220 | 180 | 4+1,5 | 5 | 4550x1550x1470 | 5500 | |
| 4R IHS 2570X250 | 2570 | 6 | 8 | 8 | 10 | 250 | 200 | 7,5+1,5 | 5 | 4550x1550x1470 | 6300 | |
| 4R IHS 2570X275 | 2570 | 10 | 12 | 12 | 16 | 275 | 220 | 16.5 | 1,5-5 | 5350x1750x1950 | 9500 | |
| 4R IHS 2570X320 | 2570 | 12 | 16 | 16 | 20 | 320 | 240 | 20 | 1,5-5 | 5450x1850x2050 | 12050 | |
| 4R IHS 2570X350 | 2570 | 16 | 20 | 20 | 25 | 350 | 260 | 23.5 | 1,5-5 | 5450x1950x2050 | 13300 | |
| 4R IHS 2570X380 | 2570 | 20 | 25 | 25 | 30 | 380 | 300 | 31.5 | 1,5-5 | 5450x2300x2450 | 17600 | |
| 4R IHS 2570X400 | 2570 | 25 | 30 | 30 | 40 | 400 | 300 | 38.5 | 1,5-5 | 5450x2300x2450 | 18300 | |
| 4R IHS 2570X460 | 2570 | 30 | 35 | 35 | 45 | 460 | 380 | 38.5 | 1,5-5 | 5450x2350x2450 | 22800 | |
| 4R IHS 2570X500 | 2570 | 35 | 40 | 40 | 50 | 500 | 400 | 60 | 1-4 | 6100x2850x3000 | 36300 | |
| 4R IHS 2570X550 | 2570 | 40 | 45 | 45 | 55 | 550 | 450 | 66 | 1-4 | 6250x2950x3050 | 44000 | |
| 4R IHS 2570X580 | 2570 | 45 | 50 | 50 | 60 | 580 | 480 | 73 | 1-4 | 6300X3100X3100 | 47300 | |
| 4R IHS 2570X620 | 2570 | 60 | 70 | 70 | 75 | 620 | 520 | 123 | 1-4 | 6350X3200X3200 | 59000 | |
Data based upon is given for 240Nmm² plate yielding strength.
4R IHS 3100
| 4R IHS | WITH PRE-BENDING | WITHOUT PRE-BENDING | Without Pre-Bending, flat plate ends may remain depending on diameter | |||||||||
| Usefull Length | Min. Diameter=top roll QX1.5 times | Min. Diameter=top roll QX5 times | Min. Diameter=top roll QX1.5 times | Min. Diameter=top roll QX5 times | Central rolls Q | Side Rolls Q | Motor Power | Working Speed | Machine Dimensions (LxWxH) | Weight | ||
| MODEL | mm | mm | mm | mm | mm | mm | mm | kw | m/min.(dk) | mm | kg | |
| 4R IHS 3100X180 | 3100 | 2 | 3 | 3 | 4 | 180 | 150 | 4,0+1,5 | 5 | 4900x1400x1390 | 4200 | |
| 4R IHS 3100X200 | 3100 | 3 | 4 | 4 | 6 | 200 | 180 | 4,0+1,5 | 6 | 4900x1400x1390 | 4850 | |
| 4R IHS 3100X220 | 3100 | 4 | 6 | 6 | 8 | 220 | 180 | 4+1,5 | 5 | 5050x1550x1470 | 6200 | |
| 4R IHS 3100X250 | 3100 | 5 | 7 | 7 | 9 | 250 | 200 | 7,5+1,5 | 5 | 5050x1550x1470 | 7050 | |
| 4R IHS 3100X275 | 3100 | 8 | 10 | 10 | 12 | 275 | 220 | 16.5 | 1,5-5 | 5900x1750x1860 | 10300 | |
| 4R IHS 3100X320 | 3100 | 10 | 12 | 12 | 16 | 320 | 240 | 20 | 1,5-5 | 5900x1850x2050 | 13050 | |
| 4R IHS 3100X350 | 3100 | 12 | 16 | 16 | 20 | 350 | 260 | 23.5 | 1,5-5 | 5900x1950x2050 | 15300 | |
| 4R IHS 3100X380 | 3100 | 16 | 20 | 20 | 25 | 380 | 300 | 31.5 | 1,5-5 | 5900x2300x2450 | 19100 | |
| 4R IHS 3100X400 | 3100 | 20 | 25 | 25 | 30 | 400 | 300 | 38.5 | 1,5-5 | 5900x2300x2450 | 20300 | |
| 4R IHS 3100X460 | 3100 | 25 | 30 | 30 | 40 | 460 | 380 | 38.5 | 1,5-5 | 6000x2350x2450 | 26960 | |
| 4R IHS 3100X500 | 3100 | 30 | 35 | 35 | 45 | 500 | 400 | 60 | 1,5-5 | 6650x2850x3000 | 38800 | |
| 4R IHS 3100X550 | 3100 | 35 | 40 | 40 | 50 | 550 | 450 | 66 | 1-4 | 6800x2950x3050 | 47300 | |
| 4R IHS 3100X580 | 3100 | 40 | 45 | 45 | 60 | 580 | 480 | 73 | 1-4 | 6800x3000x3050 | 50300 | |
| 4R IHS 3100X620 | 3100 | 50 | 60 | 60 | 70 | 620 | 520 | 123 | 1-4 | 7250x3300x3350 | 62300 | |
| 4R IHS 3100X680 | 3100 | 60 | 70 | 70 | 85 | 680 | 580 | 150 | 1-4 | 7750x3550x3700 | 82800 | |
Data based upon is given for 240Nmm² plate yielding strength.
4R IHS 4100
| 4R IHS | WITH PRE-BENDING | WITHOUT PRE-BENDING | Without Pre-Bending, flat plate ends may remain depending on diameter | |||||||||
| Usefull Length | Min. Diameter=top roll QX1.5 times | Min. Diameter=top roll QX5 times | Min. Diameter=top roll QX1.5 times | Min. Diameter=top roll QX5 times | Central rolls Q | Side Rolls Q | Motor Power | Working Speed | Machine Dimensions (LxWxH) | Weight | ||
| MODEL | mm | mm | mm | mm | mm | mm | mm | kw | m/min.(dk) | mm | kg | |
| 4R IHS 4100X275 | 4100 | 4 | 6 | 6 | 8 | 275 | 220 | 16.5 | 1,5-5 | 6900x1750x1950 | 13300 | |
| 4R IHS 4100X320 | 4100 | 6 | 8 | 8 | 10 | 320 | 240 | 20 | 1,5-5 | 7000x1850x2050 | 15050 | |
| 4R IHS 4100X350 | 4100 | 8 | 10 | 10 | 12 | 350 | 260 | 23.5 | 1,5-5 | 7000x1950x2050 | 19700 | |
| 4R IHS 4100X380 | 4100 | 10 | 12 | 12 | 16 | 380 | 300 | 31.5 | 1,5-5 | 7000x2300x2450 | 22500 | |
| 4R IHS 4100X400 | 4100 | 12 | 16 | 16 | 20 | 400 | 300 | 38.5 | 1,5-5 | 7000x2300x2450 | 24500 | |
| 4R IHS 4100X460 | 4100 | 16 | 20 | 20 | 25 | 460 | 380 | 38.5 | 1,5-5 | 7000x2350x2450 | 33700 | |
| 4R IHS 4100X500 | 4100 | 20 | 25 | 25 | 35 | 500 | 400 | 60 | 1-4 | 7650x2850x3000 | 44000 | |
| 4R IHS 4100X550 | 4100 | 25 | 30 | 30 | 40 | 550 | 450 | 66 | 1-4 | 7800x2950x3050 | 55500 | |
Data based upon is given for 240Nmm² plate yielding strength.
4R IHS 6100
| 4R IHS | WITH PRE-BENDING | WITHOUT PRE-BENDING | Without Pre-Bending, flat plate ends may remain depending on diameter | |||||||||
| Usefull Length | Min. Diameter=top roll QX1.5 times | Min. Diameter=top roll QX5 times | Min. Diameter=top roll QX1.5 times | Min. Diameter=top roll QX5 times | Central rolls Q | Side Rolls Q | Motor Power | Working Speed | Machine Dimensions (LxWxH) | Weight | ||
| MODEL | mm | mm | mm | mm | mm | mm | mm | kw | m/min.(dk) | mm | kg | |
| 4R IHS 6100X350 | 6100 | 4 | 6 | 6 | 8 | 350 | 260 | 23.5 | 1,5-5 | 9000x1950x2050 | 25100 | |
| 4R IHS 6100X380 | 6100 | 6 | 8 | 8 | 10 | 380 | 300 | 31.5 | 1,5-5 | 9000x2300x2450 | 28900 | |
| 4R IHS 6100X400 | 6100 | 8 | 10 | 10 | 13 | 400 | 300 | 38.5 | 1,5-5 | 9000x2300x2450 | 31000 | |
| 4R IHS 6100X460 | 6100 | 10 | 12 | 12 | 15 | 460 | 380 | 38.5 | 1,5-5 | 9000x2350x2450 | 42000 | |
| 4R IHS 6100X500 | 6100 | 12 | 16 | 16 | 20 | 500 | 400 | 60 | 1-4 | 9650x2600x2450 | 68300 | |
| 4R IHS 6100X550 | 6100 | 16 | 20 | 20 | 25 | 550 | 450 | 66 | 1-4 | 9800x2950x3000 | 71500 | |
| 4R IHS 6100X620 | 6100 | 20 | 25 | 25 | 30 | 620 | 520 | 123 | 1-4 | 10250x3300x3350 | 91000 | |
| 4R IHS 6100X720 | 6100 | 25 | 30 | 30 | 35 | 720 | 680 | 150 | 1-4 | 10400-3300-3400 | 115500 | |
Data based upon is given for 240Nmm² plate yielding strength.
